Intel Xeon processor MP

The Intel® Xeon™ processor MP is designed specifically for 4-way and above multi-processor servers. The combination of Intel® NetBurst® microarchitecture, Hyper-Threading Technology and integrated three-level cache architecture delivers new levels of throughput for larger server workloads. The Intel Xeon processor MP results in increased transaction rates, faster response times, and improved availability and scalability. Running at up to 2.80 GHz with up to 2 MB of integrated level 3 cache, the Intel Xeon processor MP is the processor of choice for demanding e-Business and enterprise server applications.

Intel Xeon Processors

The Intel® Xeon™ processor delivers the innovative technology, demonstrated reliability, and comprehensive platform solutions required to meet your customers’ wide-ranging server, workstation, and high performance computing needs. Based upon the proven Intel® NetBurst® microarchitecture, the Intel Xeon processor delivers groundbreaking Hyper-Threading Technology to dual-processing servers and workstations.

Intel Xeon Processors with 800 MHz System Bus

The Intel Xeon Processor with 800 MHz system bus, designed for dual-processor server and workstation platforms, is now available at a variety of speeds from 3.60 GHz down to 2.80 GHz. The processor, built on Intel's newest 90nm process technology, features technology such as Hyper-Threading Technology, Demand Based Switching (DBS) with Enhanced Intel SpeedStep® Technology, Intel® Extended Memory 64 Technology and Streaming SIMD Extensions 3 (SSE3).

Intel Celeron Processor

Intel® Celeron® Processors - Now offered at speeds up to 2.80 GHz! Intel introduces 2 new Celeron processors- 2.80 and 2.50 GHz with 400 MHz system bus in the 478-pin FC-PGA2 package further expanding Intel's product offerings for the Value PC market segment. The Intel Celeron brand family of processors delivers quality, reliability, and compatibility while offering good performance for today's most widely used applications.

Intel P4 Processor

A PC based on the Intel® Pentium® 4 Processor enables advanced performance for today's productivity, digital imaging, music and entertainment applications. The Intel® Pentium® 4 Processor provides the performance, quality, and reliability demanded by consumer and business customers.

Intel® Pentium® 4 Processor with HT Technology

A PC based on the Intel® Pentium® 4 Processor with HT Technology allows software programs to "see" two processors and work more efficiently. Improves performance and system responsiveness in today's multitasking environments by enabling the processor to execute instruction threads in parallel.

Intel Pentium 4 Processor Extreme Edition

Power for the passionate gamer and advanced performance for advanced users, the Intel® Pentium® 4 Processor with HT Technology^† Extreme Edition 3.20 GHz has a 2MB L3 cache which helps deliver an incredible experience for those uses who need processing power for today's most advanced applications.Check
out the new 3.46GHz 1066FSB Extreme LGA 775 processor.

Intel® Pentium® D Processor (Dual Core)

Whether performing video editing, playing graphic intensive games or running multiple background task simultaneously, users today have high expectations for their PC performance with little tolerance for degradation in experience. For people who run multiple demanding applications simultaneously, the Intel Pentium D processor is Intel's preferred desktop processor. Because it is powered by two execution cores in one processor it offers exceptional functionality and performance so consumers get the most productivity and enjoyment from their PC's when one or more people are running multiple applications at the same time.

Intel Pentium 4 Processor Extreme Edition

The Intel® Pentium® Processor Extreme Edition with the processing capabilities of four threads delivers more computing capabilities enabling you to explore new ways to accomplish and enjoy performance intensive tasks on your PC. With Dual-Core- support. Two physical cores in one processor enables better system responsiveness and better multi-tasking capability than a comparable single core processor.

Intel® Core™2 Extreme Processor

The Intel® Core™2 Extreme processor delivers revolutionary dual-core performance for those who want the most intense, high-performance computing experience available. Designed for gamers and power users, the Intel Core 2 Extreme processor provides exceptional performance for ultra-realistic games and advanced digital media creation applications.

Intel® Core™2 Quad Processor

Intel brings you the world's first quad-core processors for desktop and mainstream servers, leading the industry in multi-core technology. Find out about the blistering performance on desktop or servers. See how Intel® quad-core technology delivers unprecedented performance to high-end computers. Now introducing the Intel® Core™2 Quad processor Intel’s most advanced processor just got an upgrade to the power of four—four processing cores for the ultimate in demanding entertainment
Up to 54% better performance for intense multimedia applications, streaming movies, music, and more with powerful Intel quad-core technology Up to 53% better performance when enjoying immersive 3-D gaming Up to 79% faster performance for highly-threaded applications when creating multimedia and 3-D content Up to 8MB of L2 cache and 1066 MHz Front Side Bus for an unrivaled multitasking experience

Intel Extreme Series P4 LGA 775 Socket Motherboards

Based on the Intel® 925X Express chipset featuring Intel's advanced performance architecture, the Desktop Board D925XBC with Intel® Matrix Storage Technology brings new levels of performance to the desktop by combining support for an 800 MHz system bus, dual-channel DDR2 533 memory, PCI Express* x16 graphics, and native SATA150 RAID. Premium features such as Gigabit LAN, 1394a ports, and Intel® High Definition Audio (enabling 7.1 surround sound) further enhance this high-performance product.

Intel Extreme Series P4 LGA 775 Socket Motherboards

Harnessing the advanced computing power of the Intel® Pentium® processor Extreme Edition, the Intel® Desktop Boards Extreme Series are optimized to deliver new levels of performance that is essential for needs of power-users and high-end gamers.
The Extreme Series boards showcase one of the most advanced integrated audio solutions to be found on an Intel desktop board. Intel® High Definition Audio provides the sound quality foundation enabling a 24-bit/192Khz capable audio solution with support for 7.1 channel surround sound.

Intel SR1300 Server Chassis

The Intel® Server Chassis SR1300 is an innovative 1U rack-optimized chassis designed for the Intel® Server Board SE7500WV2. Featuring up to two PCI riser slots and three drive bays, the chassis is ideal for building powerful Web, application front-end, and other high-density solutions.

Intel SR1350-E Server Chassis

The Intel® Entry Server Chassis SR1350-E is a 1U server chassis specifically designed for building cost-effective rack-mount servers and front-end appliance applications. Validated with Intel® Server Boards SE7501CW2, SE7501BR2, and SE7501HG2, the Intel Entry Server Chassis SR1350-E accommodates dual Intel® Xeon™ processors and features two drive bays for SCSI or ATA (IDE).

Intel SR2200 Server Chassis (Discontinued

The Intel® Server Chassis SR2200 is a 2U rack chassis designed for Intel® Server Board SCB2. Featuring up to 6 PCI slots on dual peer PCI risers, 8 drive bays, and optional redundant power, it is ideal for building powerful Web, application front-end, and multi-purpose, high-density solutions.

Intel SR2300 Server Chassis

Innovative and rack-optimized for the Intel® Server Board SE7501WV2, the Intel® Server Chassis SR2300 supports a variety of high-density system configurations with the latest server-chassis technology. The Server Chassis SR2300 includes two PCI-X risers, six one-inch drive bays for supporting hot-swap SCSI drives, and a seventh bay supporting either an additional SCSI drive or a slim-line CD-ROM/floppy or DVD/floppy drive module. The Server Chassis SR2300 is available in two configurations; both provide premium cooling technology for support of two Intel® Xeon™ processors.

Intel SC5250-E Server Chassis

The Intel® Entry Server Chassis SC5250-E lets you meet many customer needs ranging from file and print for SMB to work station requirements with one chassis. The Server Chassis SC5250-E supports Intel Server Boards SE7505VB2, SE7501BR2, S845WD1-E, and SE7500CW2 with dual Intel® Xeon (tm) processors., pedestal configuration, single 450W power supply, and different drive configurations

Intel SC5295-E Server Chassis

The Intel® Entry Server Chassis SC5295-E provides basic features and flexibility in pedestal configuration and is available in Black . Supports up to 6 fixed / standard drives and can be easily upgradable to 5 hot-swap Ultra320SCSI drives or upto 4 hot-swap S-ATA drives .The Server Chassis SC5295 supports currently four Intel® Server Boards SE7230NH1, SE7320EP2, SE7525RP2, and SE7520BD2VD2 with dual Intel® Xeon™ processors (with exception of SE7230NH1) providing configuration flexibility and meeting a variety of customer needs.

Intel SC5300 Server Chassis

The Intel® Server Chassis SC5300 combines outstanding reliability, extensive scalability, and superior manageability in a versatile chassis designed to meet diverse needs. This chassis provides an ideal foundation for a range of environments, from multi-purpose servers for small businesses to workgroup database servers and departmental Exchange* servers. Configurable in a pedestal or rack-mount form factor, the Intel Server Chassis SC5300 includes an assortment of options to effectively handle current and future storage and performance requirements.

Intel SC5200 Server Chassis

For customers ranging from the emerging e-Business to the established enterprise, dependable servers are the foundation of a successful operation. With the Intel® Server Chassis SC5200, you can give your customers a foundation that’s highly reliable, designed specifically to deliver the cost-effective performance advantages of dual Intel® Xeon™ processors, and available in a choice of configurations. The Intel® Server Chassis SC5200 is also remarkably flexible. It supports Intel server boards and is available in rack or pedestal configuration, with single or redundant power supply, with five IDE or ten one-inch Ultra320 SCSI hard drives-to give but a few examples.

Intel SC5100 Server Chassis

Dependable servers are the critical foundation of any successful e-Business. For high server availability, utilize Intel® server building blocks, including the new Intel® Server Chassis SC5100. Available in multiple configurations to meet your customers' unique needs, this chassis is flexible, scalable, and built to keep servers up and running.

Intel Pentium III Server Boards

The Intel® Server Board SDS2 is a powerful multi-purpose server board for workgroup and internet applications. It supports two Intel® Pentium® III processors with 512-KB L2 cache, 6 GB PC133 ECC SDRAM memory and six PCI slots on triple peer PCI buses. It is perfect for building powerful general purpose server applications such as e-business, file/print, messaging, and database.

Intel Pentium 4 Server Boards

Intel® Entry Server Board SE7210TP1-E With the outstanding performance available from the Intel® Pentium® 4 processor,
businesses accept that a uni-processor system is adequate for running many entry level server applications. But they also recognize that the typical uni-processor system, made for the desktop, cannot deliver the level of data protection, I/O bandwidth, and manageability that is required for servers and network appliances. In response, Intel offers the Intel® Entry Server Board SE7210TP1-E for uniprocessor server systems without compromise.

Intel Xeon Server Boards 400/533 FSB

A real server based on the Intel Xeon processor helps to keep your business up and running and provide the security and quality you expect. As your business continues to grow, your computing demands increase. A real server based on the Intel Xeon processor has the capacity to handle higher office workload demands and allow you to enhance your platform as your business needs expand.

Intel Xeon Server Boards 800 FSB

The Intel® Server Board SE7525GP2 provides an ideal solution for database and application servers and high-end graphics workstations. For processing power and memory performance, the Server Board SE7525GP2 supports dual Intel® Xeon™ processors with an 800 MHz system bus and up to 8 GB of dual-channel ECC DDR 266/333 SDRAM memory support. The board also provides exceptional I/O performance and scalability through support for PCI-X and the next-generation PCI Express*.

INTEL DX48BT2 MOTHERBOARD

INTEL DX48BT2 EXTREME SERIES X48 DESKTOP BOARD, ATX, DDR3 1600, 3XPCIE X16, 1600MHZ FSB, LGA775, RETAIL MOTHERBOARD

INTEL DX48BT2 EXTREME SERIES MOTHERBOARD

The current BIOS versions for the two models are the same, at 1521, and the various driver versions are also identical so you can read the DX38BT review to get the low-down on the layout of the DX48BT2. The short version is that it’s very neat and tidy with support for DDR3 memory and triple PCI Express 2.0 graphics slots with CrossFire but you don’t get legacy connectors such as PS/2 ports or a connector for a floppy drive.

As the single new feature with the DX48BT2 is the 1600MHz support for memory and front side bus that’s what we’ll concentrate on, starting with the Core 2 Extreme QX9650 processor.

This is a quad-core that runs at 3.00GHz on a 1,333MHz front side bus. With most makes of motherboards you can set the memory speed independently of the front side bus but Intel doesn’t make life so easy. By default our OCZ PC3-1600 Titanium ran at 1,066MHz and once we fed it the extra voltage that it needed we could run it at 1,333MHz without any problem. The performance varied slightly from previous tests that we ran on the DX38BT when the memory speed had been limited to 1,066MHz but the differences were relatively tiny.

Well, the time has finally come for Intel to wade in with its DX48BT2 motherboard which in essence is a DX38BT with the addition of support for 1,600MHz DDR3 memory and that all important 1,600MHz front side bus. The obvious comment here is ‘about time too’ but things aren’t quite that simple. Over the past few months it has become clear that Intel has no plans to release any more Core 2 processors on the faster front side bus before the arrival of Nehalem in Q4. This means that the QX9770 wasn’t the start of something wonderful but is to all intents and purposes a reviewer’s special - well would you spend £1,000 on one? - so the processors that you are interested in supporting should be a 45nm Penryn Core 2 Duo or Core 2 Quad running on a 1,333MHz front side bus.

Placing the DX38BT and DX48BT2 side-by-side I cannot see a single difference between the two motherboards. Of course you’d expect the two models would be very similar and in many ways that’s no bad thing as the layout of the DX38BT is pretty good but there are more oddities yet to come. Take the five passive coolers on the voltage regulators as an example. Intel picks them out on the product brief as having new and improved designs but they look the spitting image of the coolers used on the DX38BT. It’s possible that Intel has changed the material that it used for the coolers but I’m prepared to go out on a limb and say that they are the same.

INTEL DX48B2 EXTREME MOTHERBOARD SPECIFICATION AND FUTURE

Form factor	ATX (12.00 inches by 9.60 inches [304.80 millimeters by 243.84 millimeters])
Processor	Support for both 45nm & 65nm INTEL CORE 2 QUAD PROCESSORS in an LGA775 socket with a 1600, 1333 or 1066 MHz system bus Support for both 45nm & 65nm INTEL CORE 2 EXTREME PROCESSORS in an LGA775 socket with a 1600, 1333 or 1066 MHz system bus Support for both 45nm & 65nm INTEL CORE 2 DUO PROCESSORS in an LGA775 socket with a 1333 or 1066 MHz system bus Support for an INTEL PENTIUM DUAL –CORE PROCESSOR in an LGA775 socket with an 800 MHz system bus
Memory	Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR3 1600 MHz, DDR3 1333 MHz, DDR3 1066 MHz, or DDR3 800 MHz DIMMs Support for up to 8 GB of system memory Support for ECC and non-ECC memory
Chipset	INTEL X48 EXPRESS CHIPSET
Audio	INTEL HIGH DEFINITION AUDIO subsystem in the following configuration:8-channel (7.1) Dolby Home Theater Audio subsystem with five analog audio outputs and two S/PDIF digital audio outputs (coaxial and optical) using the Sigmatel* 9274D audio codec
ATI* CrossFire* multi-GPU platform support	ATI CrossFire technology enables two ATI* graphics cards to work together for ultimate 3D gaming performance and visual quality Full support of Next Generation ATI Crossfire
I/O control	I/O controller for Consumer IR
LAN support	Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82566DC Gigabit Ethernet Controller
Peripheral interfaces	Twelve USB 2.0 ports (8 external ports, 2 internal headers) Six SERIAL ATA 3.0 Gb/s ports, including 2 eSATA port with RAID support supplied by a Marvell* controller Two IEEE-1394a ports (1 external port, 1 internal header) Consumer IR receiver and emitter (via internal headers) One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support (2 devices supported)
Expansion capabilities	Two PCI Conventional* bus add-in card connectors (SMBus routed to both PCI Conventional bus add-in card connectors) One primary PCI EXPRESS 2.0 x16 (electrical x16) bus add-in card connector One secondary PCI Express 2.0 x16 (electrical x16) bus add-in card connector One PCI Express* 1.0a x16 (electrical x4) bus add-in card connector
MICROSOFT WINDOWS VISTA PREMIUM READY	With a PC built with Intel® Core™2 Duo or Intel® Core™2 Quad processors, and the Intel® Desktop Board, you can experience a more responsive and manageable environment of Microsoft Windows Vista* including a new visual sophistication of the Microsoft Windows Aero* interface.

Intel Menlow Powered GPS Enabled MIMD Slider UMPC

Previously known as Elektrobit, EB have showcased their sleek new UMPC which not only comes with inbuilt GPS and HSDPA but is also one of the first devices to be based on Intel’s new Menlow platform – utilising the Silverthorne processor and Poulsbo chipset – which promises greatly enhanced battery performance in comparison to comparable systems.

Details are a little thin on the ground at the time of writing. However, what is known is that EB’s Linux based UMPC is tagged as being a Mobile Internet Media Device (MIMD) and is designed to be ‘pocketable’ whilst featuring an impressively proportioned 4.8 inch touchscreen LCD and a full QWERTY keyboard thanks to its slider design.

There’s also no word on pricing or expected availability at this time but, rest assured, the moment full specifications concerning the head turning EB UMPC are published we’ll be posting them right here (along, we hope, with some jaw dropping imagery).

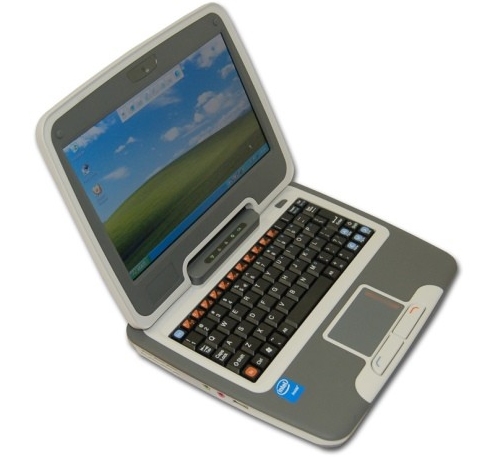

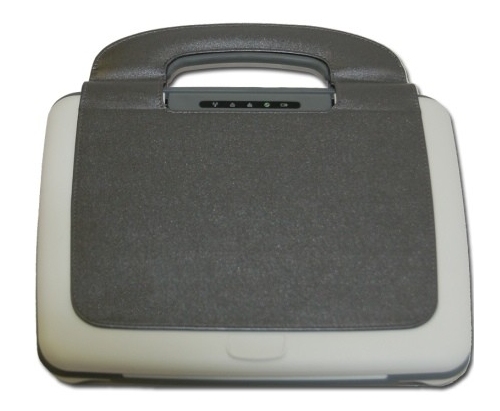

Intel drops some official news on the 2go PC

We’ve finally run across some solid-looking information about that highly-rumored portable notebook coming from Intel. The small education-targeted computer will be named 2go PC and comes with a very decent set of features including an Intel Celeron M processor and 512 MB of memory (upgradable to 1GB).

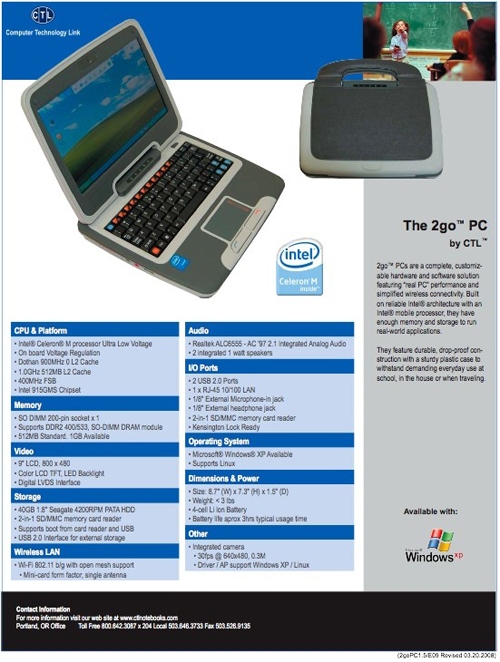

If you look close you can make out the details in the spec sheet after the jump, but to save you some eye strain some of the notable features include overall dimensions of 8.7″x7.3″x1.5″, a 9″ LCD (840×480), 40GB 4200RPM HDD, 802.11 b/g Wi-Fi, a SDMMC memory card reader, integrated 30fps camera and it runs Windows XP and has support for Linux.This notebook is sure to take a bite out of Negroponte and the OLPC laptop in at least some markets. Although the XO laptop has yet to reach it’s $100 price tag goal, it does sell for less than the expected $400 on Intel’s 2go PC, and is more adapt for outdoors and remote locations. Non third-world classrooms however are sure to take a liking to this one. The notebook is manufactured by CTL and is expected to be on shelves before the end of May.

New Intel UMPC known as Erath

This is Intel’s new UMPC which has been named Intel Erath, introduced at Computex 2007 and with not many details to go on we can tell you that this portable computer has a 5.6″ display that can swivel, a QWERTY keyboard and the battery life will be very good thanks to Intel’s new low power architecture silicon inside.

That’s about all we know about this little device called the Intel Erath, but we are left with the question is it touch sensitive? As that would be the best way to navigate through Windows without a mouse, but we will have to wait for more details on that, the price and availability which we will update you as soon as we get them.

The Details On Intel’s Centrino 2

Intel has officially launched the Centrino 2 platform. Shipping from today, it consists primarily of a 45nm Penryn Core 2 Duo processor running from 2.26GHz to 3.06GHz, with a 6MB L2 cache and a 1066MHz front side bus.

The chipset has integrated WiFi-N and Graphics which would be augmented with WiMax support later this year. The biggest boone Intel claims is that the Centrino 2 platform offers 23% more performance at 23% less power as well as 70% faster graphics.

Two key features of the Centrino 2 platform are HUGI (Hurry Up and Get Idle) and VPro, which would let system administrators remotely control laptops via wireless even when the laptop is sleeping.

Intel’s Vice President of Mobile Platforms, Mooly Eden, explained that the new platform is all about HUGI.

He stated that the optimum state a mobile processor should be in is sleep mode “just like his wife”. HUGI allows the processor to be woken up when a task comes along, and put back to sleep rapidly once its done. Providing tremendous power savings.

In addition, the chipset would also support dynamic switching between the integrated graphics package and a standalone graphics card to save battery life. ATI is already producing graphics cards for the platform and nVidia will shortly.

Both consumer and enterprise offerings will have full support for dual channel DDR3 memory and Blu-Ray playback.

Intel I7 920 socket LGA1366 processor

With faster, intelligent, multi-core technology that applies processing power where it's needed most, Intel Core i7 processors deliver an incredible breakthrough in PC performance. They are the best desktop processors on the planet.

You'll multitask applications faster and unleash incredible digital media creation. And you'll experience maximum performance for everything you do.

Specifications

Product Description	Intel Core i7 920 / 2.66 GHz processor
Product Type	Processor
Processor Type	Intel Core i7 920
Processor Socket	LGA1366 Socket
Compatible Slots	1 x processor - LGA1366 Socket
Clock Speed	2.66 GHz
Manufacturing Process	45 nm
Multi-Core Technology	Quad-Core
Cache Memory	L3 Advanced Smart Cache - 8 MB
Manufacturer Warranty	3 years warranty
Features	Enhanced SpeedStep technology, Hyper-Threading Technology, Execute Disable Bit capability, Intel Virtualization Technology, Intel 64 Technology, Enhanced Halt State (C1E), Intel Thermal Monitor 2

Features and benefits

Go to the next level of multi-core performance.
Intel Core i7 processors deliver an incredible breakthrough in quad-core performance and feature the latest innovations in processor technologies:

• Intel Turbo Boost technology maximizes speed for demanding applications, dynamically accelerating performance to match your workload-more performance when you need it the most*
• Intel Hyper-Threading technology enables highly threaded applications to get more work done in parallel. With 8 threads available to the operating system, multi-tasking becomes even easier.**
• Intel Smart Cache provides a higher-performance, more efficient cache subsystem. Optimized for industry leading multi-threaded games.
• Intel QuickPath Interconnect is designed for increased bandwidth and low latency. It can achieve data transfer speeds as high as 25.6 GB/sec with the Extreme Edition processor.
• Integrated memory controller enables three channels of DDR3 1066 MHz memory, resulting in up to 25.6 GB/sec memory bandwidth. This memory controller’s lower latency and higher memory bandwidth delivers amazing performance for data-intensive applications.
• Intel HD Boost significantly improves a broad range of multimedia and compute-intensive applications. The 128-bit SSE instructions are issued at a throughput rate of one per clock cycle, allowing a new level of processing efficiency with SSE4 optimized applications.

* Intel Turbo Boost technology requires a PC with a processor with Intel Turbo Boost capability. Intel Turbo Boost performance varies depending on hardware, software and overall system configuration. Check with your PC manufacturer on whether your system delivers Intel Turbo Boost technology. See www.intel.com/technology/turboboost for more information.

** Intel Hyper-Threading technology (Intel HT technology) requires a computer system with a processor supporting Intel HT Technology and an Intel HT technology-enabled chipset, BIOS, and operating system. Performance will vary depending on the specific hardware and software you use. For more information including details on which processors support Intel HT technology, see www.intel.com/info/hyperthreading.

Intel Desktop P4 FCPGA2 Notebook Computer

Key Specifications / Special Features:

• CPU:
o Intel Desktop P4 CPU with uFCPGA2 socket
o 400 MHz FSB
o CPU speed: follow Intel road map
o 2nd Fan
• Chipset:
o Intel Brookdale-MZ and ICH3-M
o PC1600 support
• Audio:
o Realtek ALC201 AC97 Codec
o Internal Microphone
o Two speakers
• Main Memory:
o PC1600 DDR SDRAM memory interface design
o 0MB DDR RAM on board
o Two DDR SODIMM (200-pin / 2.5V / 1.25V) connectors (on the bottom with door)
o Maximum memory up to 512MB (with two 256MB SODIMM)
• Video chip:
o ATI M7-C( or Upgradeable to M9)
o 16 / 32MB DDR frame buffer
o Daughter Card Design
• Display:
o Coaxial cable
o 1024 x 768 XGA TFT color LCD, display area 14"
o 1024 x 768 XGA TFT color LCD, display area 15"
o 1400 x 1050 SXGA+ TFT color LCD (SPWG), display area 15"
o 1600 x 1200 UXGA TFT color LCD (SPWG), display area 15"
• HDD:
o 9.5mm height, 2.5" HDD
o Easily removable
o PCI Bus Master Enhanced IDE
o Support Ultra DMA-66 / 100
• FDD / LS240 / Zip:
o External FDD / LS-240 / ZIP w / USB interface
o Bootable with external FDD
• Module Bay:
o Hot swappable by end user
o 12.7mm, 8X DVD-ROM Drive
o 12.7mm, CD-RW / DVD Combo drive (CD-RW: Read / 24X, Write / 8X, Re-write / 8X; DVD: Read / 8X)
o FDD drive removable module
• SD / MMC / MS:
o Winbond W83L518D controller (Option)
• PCMCIA:
o O2 OZ6912 CardBus controller
o PC card 95 supported with one Type II
o PCI card bus
o No ZV support
• USB 1.1:
o USB 1.1 Controller embedded in the south Bridge
o Two connectors at right-hand side
o One connector at rear side
• USB 2.0:
o Discrete USB 2.0 Controller (Option)
o Two connectors at right-hand side. (USB 2.0 interface)
o One connector at rear side
• 1394:
o TI TSB43AB22 (option)
o PCI single chip solution, PCI 2.2 compliant.
o OHCI v1.1
o IEEE1394.A
• Super I / O:
o SMsC 47N227 Controller, LPC interface
• Communication:
o Manufacturing option
o Modem: MDC Card, V.90 / 92
o LAN : On board, 82562ET Kinnereth
o Wireless LAN: mini-PCI Type-IIIB, 802.11b
o Bluetooth: USB 1.1 interface module design
• Antenna Position:
o Location: (1) Right side of keyboard, and (2) Left side of keyboard
o Blue-tooth only: (1)
o Wireless LAN 802.11b only: (1) & (2)
• Options:
o Volume Control Wheel (Up / Down / Mute)
o FIR
o Lan
o SPR
o S-Video
o Blue-tooth
o Modem
o IEEE 1394
o SD / MMC slot
o MS slot
o Wireless LAN mini-PCI Type-IIIB card
o Weight saving module
• I / O ports:
o Color-coded connectors
o VGA port, 15 pins
o Microphone-in, headphones-out jacks
o One Parallel port
o No Serial port
o One PS/2 port
o One S-Video port
o External USB connector x 3
o DC in jack
o RJ-11 jack for Modem (option)
o RJ-45 jack for LAN (option)
o IEEE 1394 x1 (option)
o Blue-tooth (internal USB interface, option)
o FIR (option)
o SPR / Full Dock connector: Bottom side contact (option)
o SD / MMC slot (option)
o MS slot (option)
• SPR:
o Color-coded connectors
o 3 USBs
o VGA
o S-Video
o DC-in
o 2 PS/2
o LAN
o Parallel
o Serial
o Line out Jack
o Microphone Jack
o LED:
o Dock well indicator (Blue*2)
o Reset
o Kensington lock
• Controls / LEDs
Button Q'ty LED Color Q'ty
Lid switch 1
Power button 1
Mechanical off 1
Programmable button (One Touch button) 4
Volume Control Wheel(Up / Down / Mute) 1 Mute Green 1
RF on / off 1 RF on / off LED Blue 1
T / P On / Off 1 T / P On / Off Blue 2
T / P Left / Right 2
T / P Scroll button 1
HDD Activity Green 1
Cap Lock Blue 1
Num Lock Blue 1
Scroll Lock Blue 1
Power management Combo LED Green / Orange 2
Battery management Combo LED Green / Orange 2
LAN LEDs (On the connector) Green 2
• Keyboard:
o NS 87591L K / B controller
o 87 / 88 / 90 keys with 101 / 102 key emulation
o Support Windows keys and Application keys
o Standard pitch, 3.0 mm travel length
o Spill-proof
• Pointing device:
o Single pointing device: Alps
o Touch pad
o On / Off button
o Scroll up / down button
• Mechanical:
o Kensington lock
• Software:
o Suspend to RAM (S3)/Disk (S4)
o Various hot-keys for system control
o Password protection
o PC 2001 Compliance
o ACPI Compliance
o DMI EEPROM extension
o Win XP (Pre-loaded)
o Driver support for Win98SE / Win2K (not Pre-loaded)
o Fast POST less than 9 seconds
o Turn on to full OS less than 36 seconds.
o Resume from S3 less than 4.5 seconds
o Resume from S4 less than 22.5 seconds.
o S3 remaining 7 days
o Battery mode: No wake up support for Blue-tooth or Wireless LAN
• Full Dock:
o TBD
• Regulatory:
o EMI: FCC-B, CE, VCCI, AS (designed for C-Tick)
o Safety: CUL, CB report
o BT & 802.11b:
„X Regulatories of Intension for Radiation-ISM band (Country by Country)
„X BT Certificate
„X Wireless LAN WiFi Certificate
• Environment:
o Temperature:
„X Operating: 0 to 40 degree C.
„X Storage: -20 to 65 degree C.
o Humidity:
„X 10 to 90% without condensation at 0 ~ 45 degree C.
„X Non-OP:90% RH at 65 degree C
o shock
„X Operating: 60inch / sec, 2ms, half-sine
„X Non-operating 80inch / sec, 2ms, half-sine
o vibration:
„X Operating: 1G (5 to 500Hz)
„X Non-operating vibration: 2.16G (5 to 500Hz)
o Hinge cycle life: 20K cycles; LCD latch life: 15K cycles
o Altitude:
„X Operating:sea level 0 to 10,000 ft.
„X Storage: sea level 0 to 40,000 ft.
o MTBF:20,000 hours
o Pass PC Magazine & Mobile Computing torture test
• Battery:
o 9-cell of 18650 Li-Ion battery pack, 73.2Wh.
o 2.5 hrs operation time with ZD Battery Mark 2001 test for 9-cell Li-Ion battery
o 3.5 hrs charging time
• AC Adapter:
o Universal AC adapter, 90~264V AC, 47~63HZ
o 90W with 19V DC output
• Weight:
o 5.9 lbs
o 14" TFT LCD / 9-cell Li-Ion battery / weight-saving module / 9.5mm HDD / MDC modem card installed
• Dimensions:
o 15" SXGA+ TFT LCD, 15" UXGA TFT LCD, 15" XGA TFT LCD, 14" XGA TFT LCD
o 327mm x 269mm x 35.9mm for 15"
o 327mm x 269mm x 34.9mm for 14"
Main Export Markets:
• Worldwide

Certificate:

• EMI-CE
• FCC
• Safety:TUV

Main Product:
SD/CF/MMC mobile/Micro SD card/M2, Mobile Phone, USB Flash Disk, LCD/Thin Client Box, HSPDA USB modem
